Mitsubishi MUT-3 三菱最新原厂检测仪
产品优势：
它支持的汽油和柴油汽车/卡车
最新的版本：
汽油车：v2014-03
柴油汽车/卡车/总线：v2012
这可以做诊断和ECU的编程。
它可以在线更新。
项目描述：
个人计算机（PC）连接到mutiii单元作为系统的控制终端，并与汽车ECU通过VCI。除了能够处理由传统MUT-II测试诊断功能，该mut-iii系统可以将数据显示为易于理解的图表和图形在大屏幕上的PC。不同的mut-iii MUT-II，可以保留对所有车辆数据，从旧到新的模式，根据在PC的硬盘目的分类。这消除了尴尬但十分必要的工作与MUT-II，切换数据表（通信协议的数据和诊断项目列表数据库）与另一取代ROM包根据车辆模型和年度模型。
功能：
新的功能，利用PC机的优势也正在开发。例如，车间手册查看器是力学的一个有用的功能是他们不再需要携带一个厚厚的手册和相关的网页搜索工作时的车辆。车间手册查看器是目前可用于某些车辆模型，并允许用户检索包含故障代码，在推动一个按钮，一个特别的问题的页面。
规格：
1 语言包括：
英文，中文，法语，西班牙，泰国，越南
2 设置包括
（1）车辆通信接口（v.c.i.）（mb991824）
通讯接口用于连接汽车ECU与PC。
1）当与PC机连接
车载诊断（交互式故障诊断）
- SWS沟通；沟通支持
驱动机
伏特，欧姆，测量
燃料压力测量（我们不可用）
2）当使用v.c.i.unit（断开PC）
v.c.i.单独诊断
2）当使用v.c.i.unit（断开PC）
v.c.i.单独诊断
驱动机
ECU编程
伏特，欧姆测量
皮带张力测量
（2）1G 记忆卡
存储数据单元的重编程，硬盘录像机，等。
这是一个标准的，现成的记忆卡。提供一个（与重编程数据）是一个紧凑的闪存卡（mb991853）插入CF卡适配器（mb991939）。
3）m.u.t. III主要利用（mb991910）
当连接，只有一个16针连接器用于诊断车辆v.c.i.。
-支持故障诊断和ECU对上述车辆更新
-支持CAN通信系统
4）m.u.t. III主要利用B（mb991911）
使用时，有16引脚+ 12针或16针+ 13针诊断连接器连接v.c.i.车辆。
对于只配备12针的模型（或12针12针）诊断连接器，连接m.u.t. II接头线束（mb991498）的线束端在m.u.t. - II相同，而功率从点烟器插座提供
MUT-3 Diagnostic and Programming Tool for Mitsubishi New Update Online
The advantages:
It supports gasoline and diesel car/truck
Newest version:
Gasoline car: v2014-03
Diesel car/truck/bus: v2012
This one can do diagnose and also ecu programming.
It can be updated on line.
Item Description:
A personal computer (PC) is connected to the MUTIII unit and used as a system's control terminal, and communicates with a vehicle ECU through the VCI. In addition to being able to handle all diagnosis functions covered by the conventional MUT-II tester, the MUT-III system can display data as easy-to-understand diagrams and graphs on a large screen of the PC. Unlike the MUT-II, the MUT-III can retain data on all vehicles, from old to new models, classified according to destination in the PC's hard disk. This eliminates the awkward but essential job with the MUT-II, of switching the data list (communications protocol data and diagnosis item list database) by replacing the ROM pack with another according to the vehicle model and year model.
Functions:
New functions that make use of the advantages of the PC are also being developed. For example, the workshop manual viewer is a useful function for mechanics as they no longer have to carry around a thick manual and search for relevant pages while working on a vehicle. The workshop manual viewer is currently available for certain vehicle models, and allows users to retrieve the pages containing the failure code for a particular problem at the push of a button.
Specifications:
1. Language including:
English, Chinese, French, Spainsh, Thai,Vietnamese

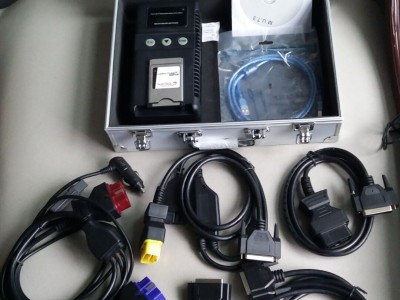

2. Set Includes
(1) Vehicle Communication Interface (V.C.I.) (MB991824)
A communication interface used to connect the vehicle ECUs and the PC.
1) When connected with the PC
-Vehicle diagnosis (Interactive fault diagnosis)
-SWS communication; CAN communication support
-Drive recorder
-Volt, Ohm, measurement
-Fuel pressure measurement (Not available in US)
2) When used with the V.C.I.unit (disconnected from PC)
-V.C.I. Stand-alone diagnosis
-Drive recorder
-ECU reprogramming
-Volt,Ohm measurement
-Belt Tension measurement
(2) Memory Card
Stores data for ECU reprogramming, drive recorder, etc.
This is a standard, off-the-shelf memory card. The one provided (with reprogramming data) is a Compact Flash memory card (MB991853) inserted into the CF card adapter (MB991939).
(3) M.U.T.-III Main Harness A (MB991910)
Used when connecting the V.C.I. with vehicles that have only one 16-pin diagnosis connector.
-Supports fault diagnosis and ECU updating on the above-described vehicles
-Supports the CAN communication system
(4) M.U.T.-III Main Harness B (MB991911)
Used when connecting V.C.I. with vehicles that have a16-pin + 12-pin or 16-pin + 13-pin diagnosis connector.
For models equipped with only 12-pin (or 12-pin + 12-pin)diagnosis connector, connect the M.U.T.-II adapter harness(MB991498) to the end of this harness in the same as M.U.T.-II, and power is supplied from the cigarette lighter socket.
三菱检测仪带以下原厂资料，买就送。
2009年9月三菱卡车FUSO亚洲地区电子配件目录
2010年12月三菱卡车FUSO CAPS北美地区配件目录
2OO8三菱卡车FUSO CAPS配件目录
2012款三菱FUSO FE FG系列卡车维修资料服务手册
2008款三菱卡车FUSO FE FG系列维修资料服务手册
2002-2004款三菱FUSO卡车维修资料服务手册
